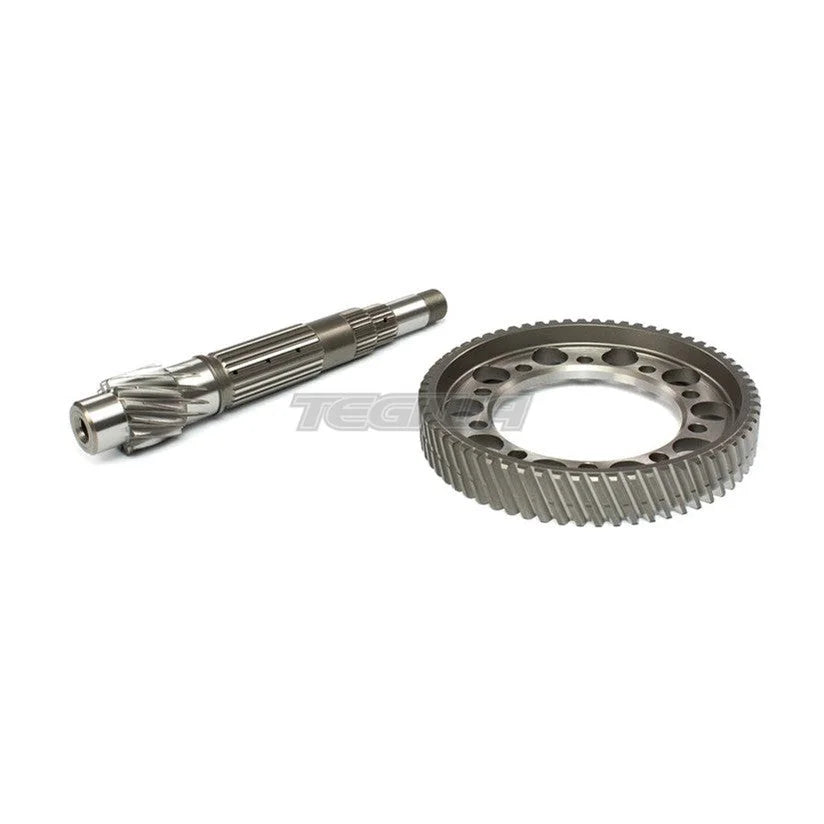

Achieve the ultimate in acceleration with the MFactory Final Drive Gears. By changing your final gear ratios, you can experience a dramatic increase in acceleration, giving you on average, a 10-15% increase in torque throughout the entire rev-range over the OEM Final Drive.Diamond Cut to exacting tolerances from Forged High-Nickel-Chromium-Molybdenum SteelPerfect fitment & finish ensures hassle-free installation & maintenance, each and every timeDesigned using leading-edge Solidworks 3D CAD & Cosmos FEA softwareAdvanced Gear Geometry minimizes parasitic drivetrain losses. Race transmissions built with MFactory components transfer, on average, 1-2% more power to the ground over our competitors!Specifications
- Made from imported Japanese SAE 8620 and 4320 Steel
- Forged, Double Tempered and Super Sub-Zero treated for unsurpassed toughness
- Advanced Shot Peening technology increases surface hardness
- Advanced gear geometry designed using industry-leading software puts more power to the ground
Fitment NotesHonda B16A2 Fitments:Will not fit models equipped with Factory LSDHonda B16A2/16B/18C Fitments:Offering a revised design over our previous generation Final Drive Gears. Forged from stronger steel with a 50% larger tooth profile yet almost 1kg lighter!Honda Cable Fitments:Will not fit models equipped with Factory LSD. 92-93 YS1 transmissions should use B16A2 fitmentsHonda ’98 Spec Fitments:Designed for the ’98 Spec Integra Type-R with Factory 4.785 Final DriveHonda H22A Fitments:Will not fit ATTS-equipped transmissions. Is also suitable for Euro-R/Accord Type-RFor Ford Focus MTX-75:Designed for 2002+ Transmission Only. Will only fit applications using the 1pc Pinion (Removable 3rd & 4th Gear)
MFACTORY BMW FITMENT GUIDE
- E36/E39/E46 All Fitments– THE LSD IS A DIRECT BOLT ON REPLACEMENT
- E8X/E9X/E60 non 35-i– THE LSD IS A DIRECT BOLT ON REPLACEMENT
- E8X/E9X/E60 35i AT– THE LSD IS A DIRECT BOLT ON REPLACEMENT
- E8X/E9X/E60 35i MT < 03/2007 (inc. 335d)– THE LSD IS A DIRECT BOLT ON REPLACEMENT
- E8X/E9X/E60 35i MT >03/2007 (inc. 335d)– THE LSD REQUIRES EITHER THE OE CROWN WHEEL TO BE WELDED TO IT OR A NEW MFACTORY FINAL DRIVE FITTED (MF-TRS-02E25, MF-TRS-02E28, MF-TRS-02E31)
- E8X/E9X/E60 35i DCT– THE LSD REQUIRES EITHER THE OE CROWN WHEEL TO BE WELDED TO IT OR A NEW MFACTORY FINAL DRIVE FITTED (MF-TRS-02E25, MF-TRS-02E28, MF-TRS-02E31)
- F20/F30 All Fitments– THE LSD REQUIRES EITHER THE OE CROWN WHEEL TO BE WELDED TO IT OR A NEW MFACTORY FINAL DRIVE FITTED (MF-TRS-02E25, MF-TRS-02E28, MF-TRS-02E31)
